BMW F22 2 Series Eurofighter

HGK Motorsport BMW F22 2 Series Eurofighter
Numbers:
Max Power: 820hp, Max Torque: 920Nm, Rev Limit: 8000rpm, Weight: 1200kg/2645lb
Chassis:
BMW F22 (2 Series coupe), Formula Drift-spec cage, fully stitch-welded chassis, custom front/rear crash bars
Engine:
Mast Motorsports V8 RHS466, 4.155-inch bore, 4.250-inch stroke, 11.6:1 compression ratio, Callies Magnum crankshaft, Billet 6.460-inch rods, HGK-spec Diamond pistons with Total Seal AP steel rings, H13 Tool steel wrist pins, Low Lash solid roller .757-inch lift, Crower solid roller lifters, PSI Max Life valve springs, Xceldyne titanium intake valves, valve spring retainers & valve locks, billet dual roller timing chain, Jesel rocker arms, 305cc LS7 heads, Dailey dry sump with air separator, 48mm 4-to-1 stainless headers, 89mm titanium exhaust, rear-mounted twin-core dual-pass radiator, electric water pump & auxiliary water pump, racing steering & engine oil radiators, Merin FIA-approved 40L fuel cell with internal lift pump system, Aeromotive A1000 fuel pump, pre & post fuel filter & fuel regulator, lightweight aluminium fuel hard lines with aluminium fittings, MoTeC M130 ECU, MoTeC PDM30 distribution module, WR-Tec mil-spec wiring harness
Drivetrain:
Samsonas 5-speed sequential transmission, Winters quick-change differential, The Driveshaft Shop driveshaft & pro-level axles
Steering/Suspension:
Nitron 3-way adjustable front & rear coilovers, HGK CNC top mounts, front & rear Wisefab knuckles & arms
Brakes:FWilwood 6-piston calipers with 11.75×1.25-inch Wilwood rotors (front), Wilwood 4-piston calipers with 12.0×0.35-inch drilled Wilwood rotors (rear), HGK CNC machined aluminum center bells & adapters, HGK hydrolic e-brake w/AP Racing cylinder
Wheels:
Work Wheels CR2P 18×8.5-inch (front) 18×10-inch (rear), 235/40R18 (front) 265/35R18 (rear) tyres
Exterior:

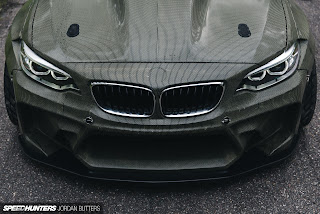

Complete carbon/Kevlar HGK Eurofighter bodykit, carbon roof, carbon/Kevlar doors, custom removeable front windows, Plastics 4 Performance polycarbonate anti-fog front & rear windows
Interior:
OMP seats, TRS 6-point seat belts, OMP steering wheel, part-flocked carbon fibre dash, AIM 7-inch color display, floor-mounted Tilton adjustable pedal assembly, HGK CNC adjustable steering column
